How to start with the Bondix Essential Cloud service

Installing the Teltonika Bondix client

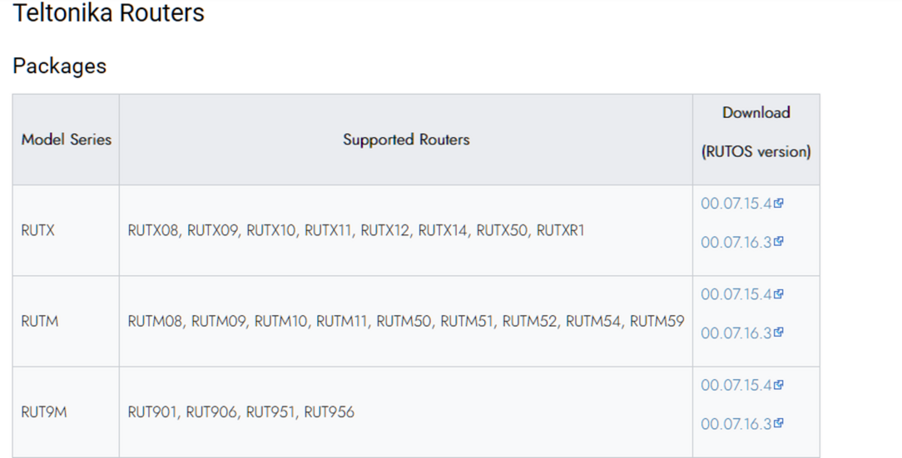

You can find the latest Bondix client for your Teltonika device on our website at:

Downloads#Teltonika Routers



Please download the client which matches your device and RutOS version.

- IMPORTANT!:

Please note that the Bondix client is only working with its specific RutOS Version. For example, if you run a Teltonika device with RutOS 7.16. you will need to upgrade to 7.16.3 to use the Bondix client.

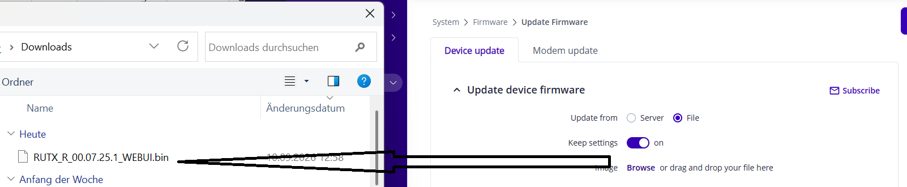

This can sometimes also include the need to downgrade a Teltonikas RutOS to a matching version, in advance to the Bondix client installation.

-

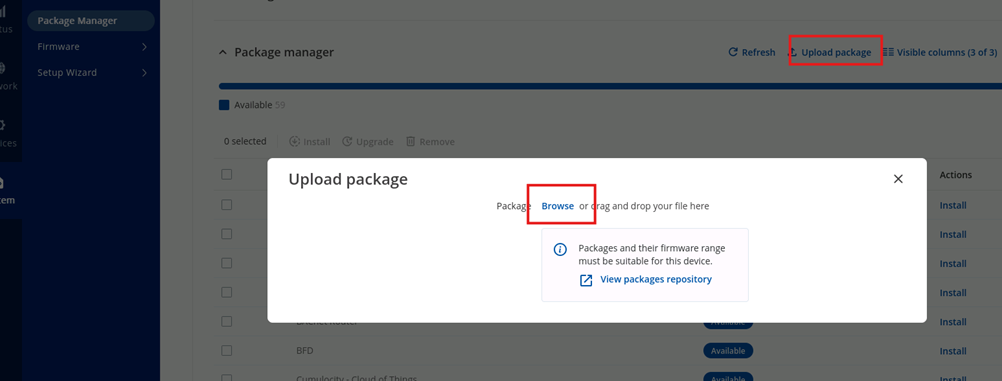

After you downloaded the matching client, use the Teltonika package manager in the System menu to install the Bondix client

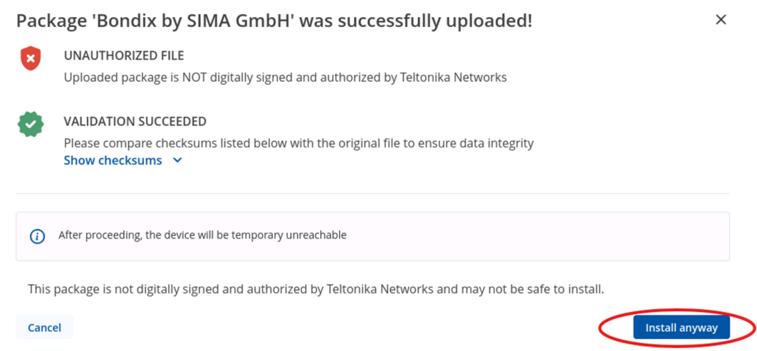

and confirm the installation:


After you proceeded the following reboot, you will find the Bondix client in the Network menu of your Teltonika device.

Preparing DNS

For proper internet access while the Bondix tunnel is used, your Teltonika router will need a dedicated DNS server configuration besides the server addresses your router may obtain from the used carriers.

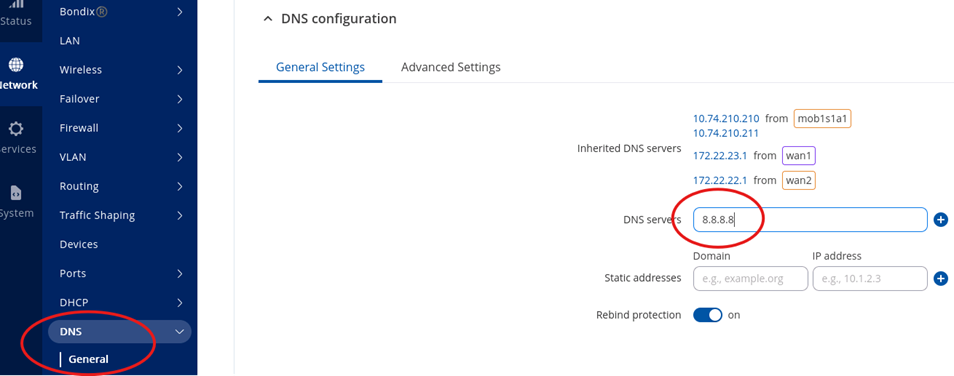

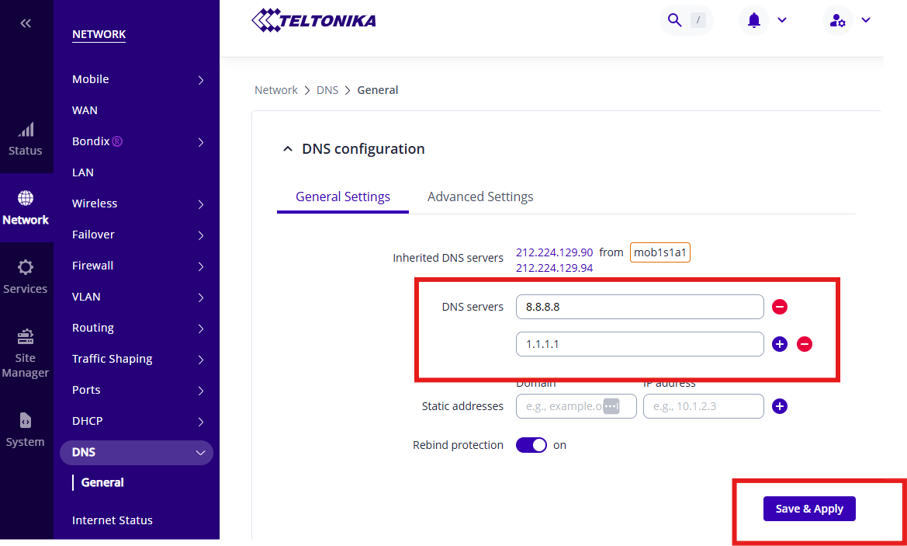

To configure this server, just use the Network DNS menu of your Teltonika device to add DNS servers of your choice (in our example, Google DNS).


Setting up the Bondix tunnel

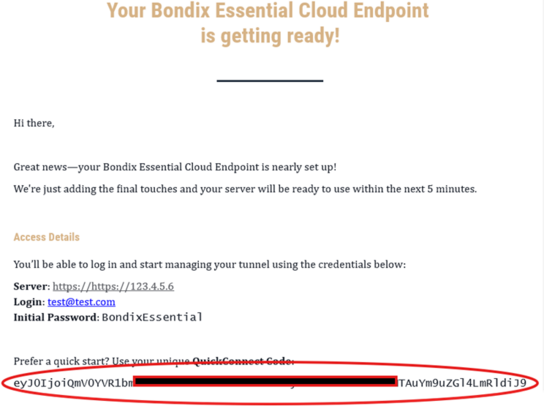

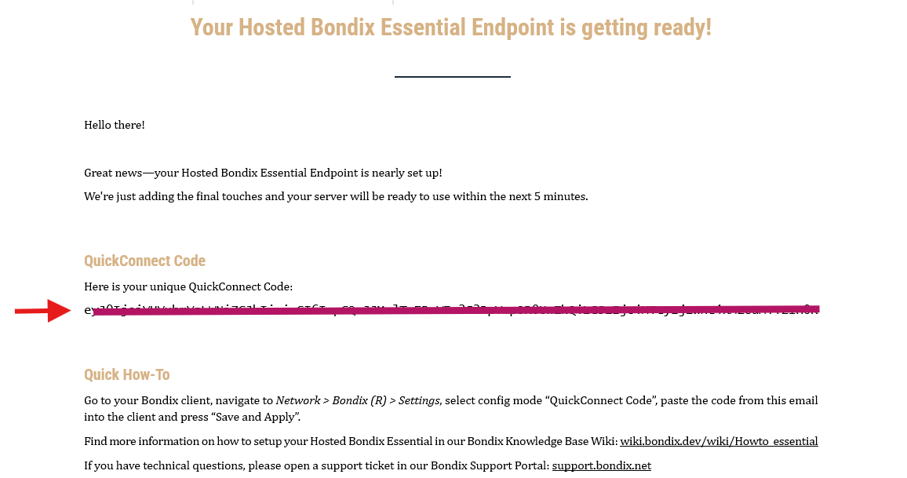

After the successful subscription to the Bondix Essential Cloud service, you will receive an email with your Bondix tunnel credentials. For a speedy start, the most relevant information in the email is your unique Bondix QuickConnect code.

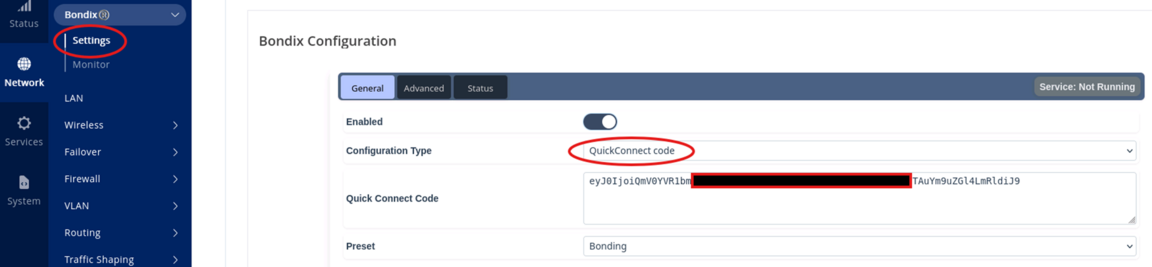

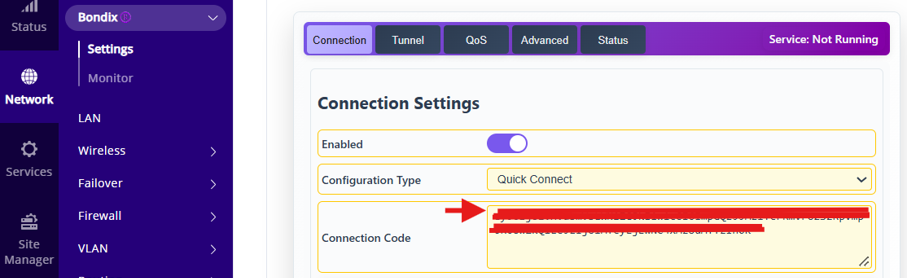

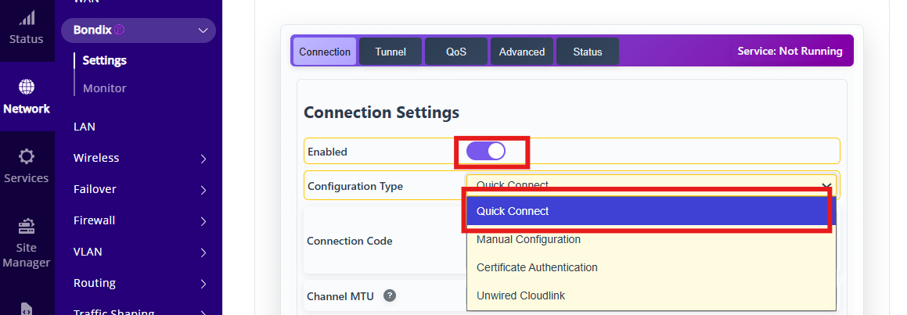

To start, just copy this code from your email and enter it in the QuickConnect code menu of your Teltonika’s Bondix client:


then switch the Enabled button to active and press the Save configuration button.

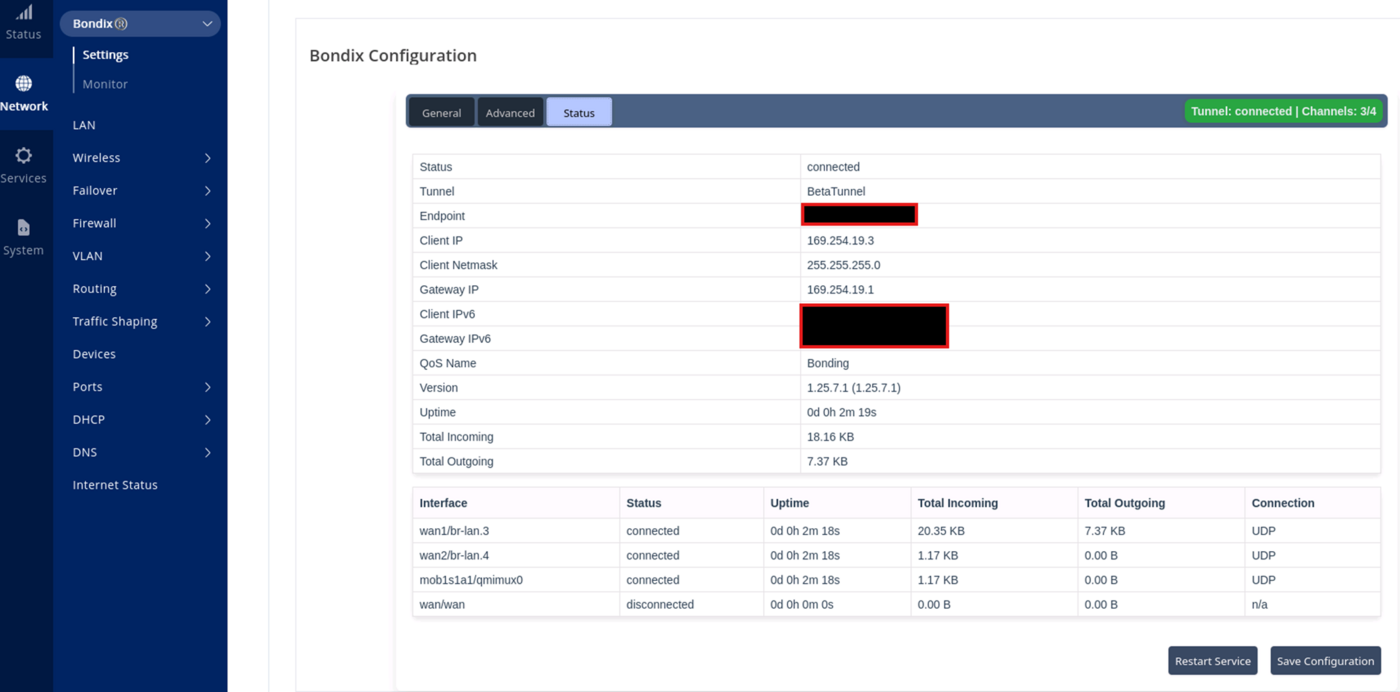

And that´s it
